CANchecked MFD32 Gen2 – for Mini Cooper F55/F56/F57 GEN3

DESCRIPTION

Introducing the CANchecked MFD32 Gen2 for Mini Cooper F55/F56/F57 GEN3

The MFD32 Gen2 transforms your air vent into an intelligent display, ensuring that vital data is always within reach. Designed for ease of installation, it comes with clear illustrated instructions, allowing anyone to set it up without the need for a professional workshop.

Shipping Information:

Due to import fees from Germany to Canada, Canada to the USA, and beyond, we have determined that it is more efficient to ship this product directly from the CANchecked warehouse in Germany. This approach allows us to maintain fair pricing for everyone. Product is vehicle specific built to order, shipping within 5 business days!

Some customs fees to be expected!

Key Features:

• Air Vent Integration: Custom bezel still allows airflow while seamlessly incorporating the display in to the dash.
• Can Bus Compatibility: Access in-depth vehicle data, similar to manufacturer diagnostic tools.
• Gear Display: Provides real-time information via Can Bus or calculations based on speed and RPM.
• Touchscreen Navigation: Intuitive swipe gestures make it easy to navigate through pages.
• Customization Options: Create personalized display pages, add images, or incorporate animations.
• Additional Inputs: Connect up to four analog inputs and an ethanol sensor directly to the display.
• Can Switching: Use the display as a keypad to send custom CAN messages.
• Customizable Alarms: Easily configure alarms for critical parameters, such as exhaust gas temperature exceeding 900°C.
• Data Logging: Record and save data to the internal SD card for later analysis.
• Performance Meter: Measure acceleration times (0-100, 100-200, and 0-200) without additional hardware.

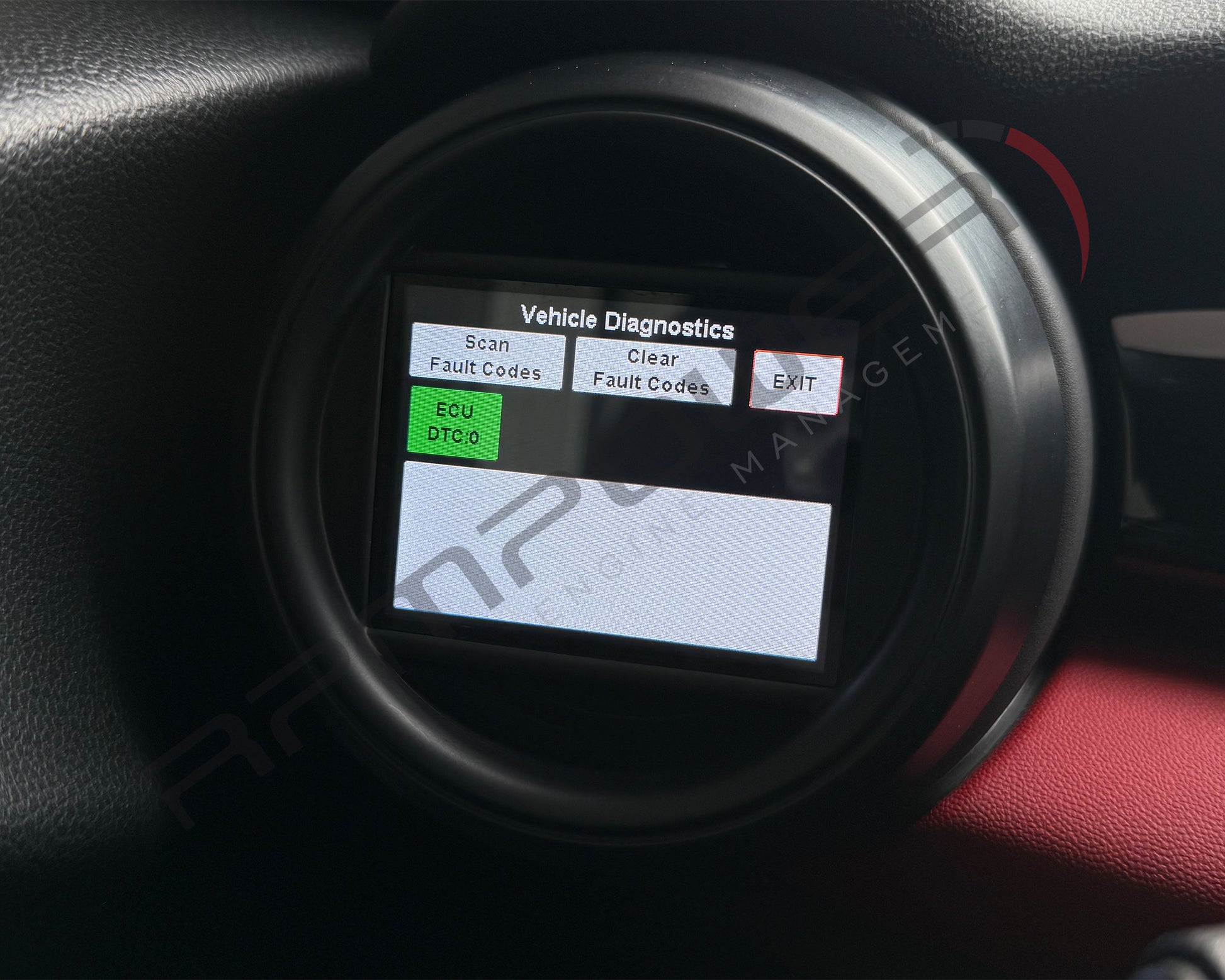

• DTC Functionality: Read and clear error codes from the engine control unit, transmission, ABS, and all-wheel drive systems.
• Automatic Dimming: The CANchecked Display dims automatically in sync with the instrument panel.

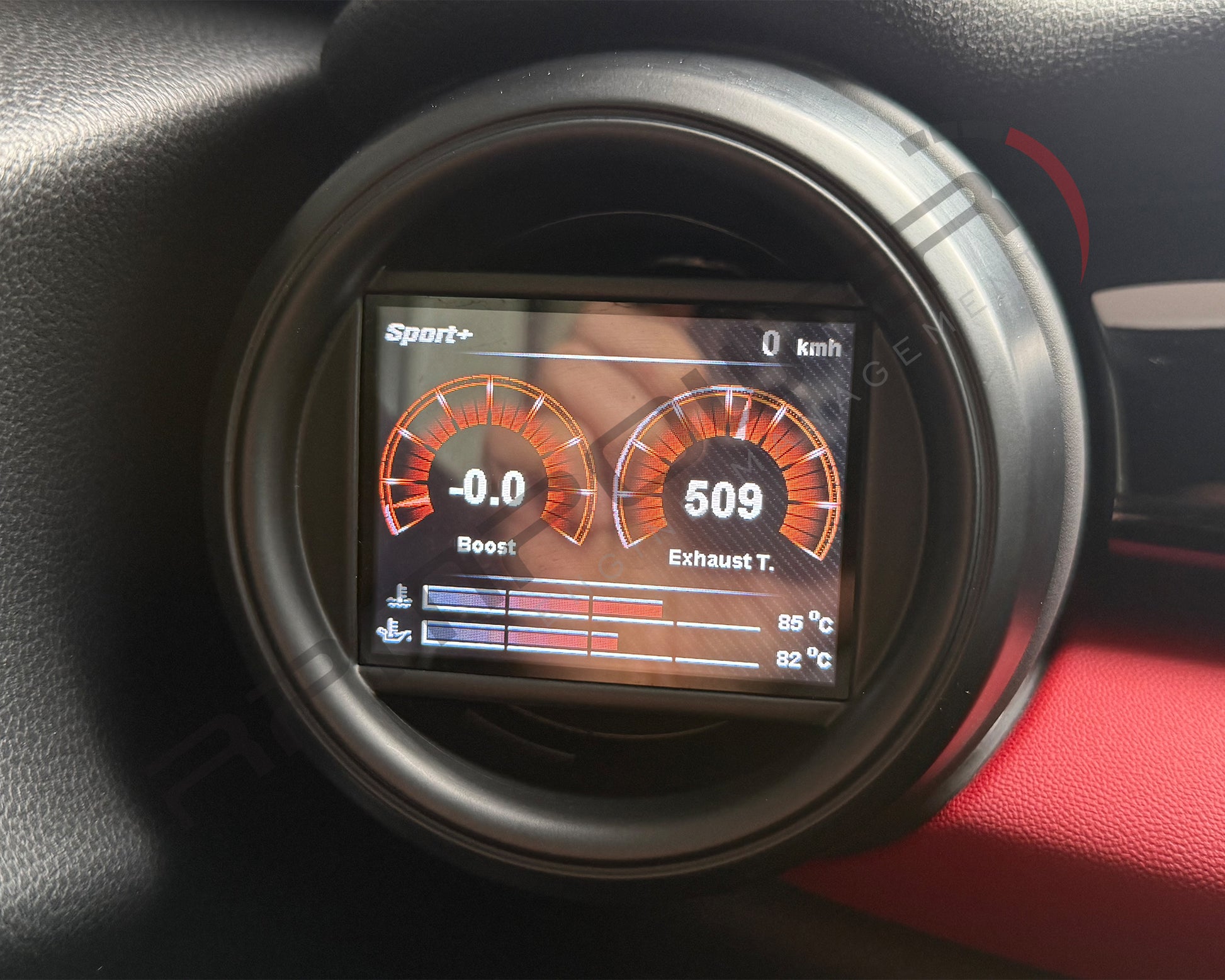

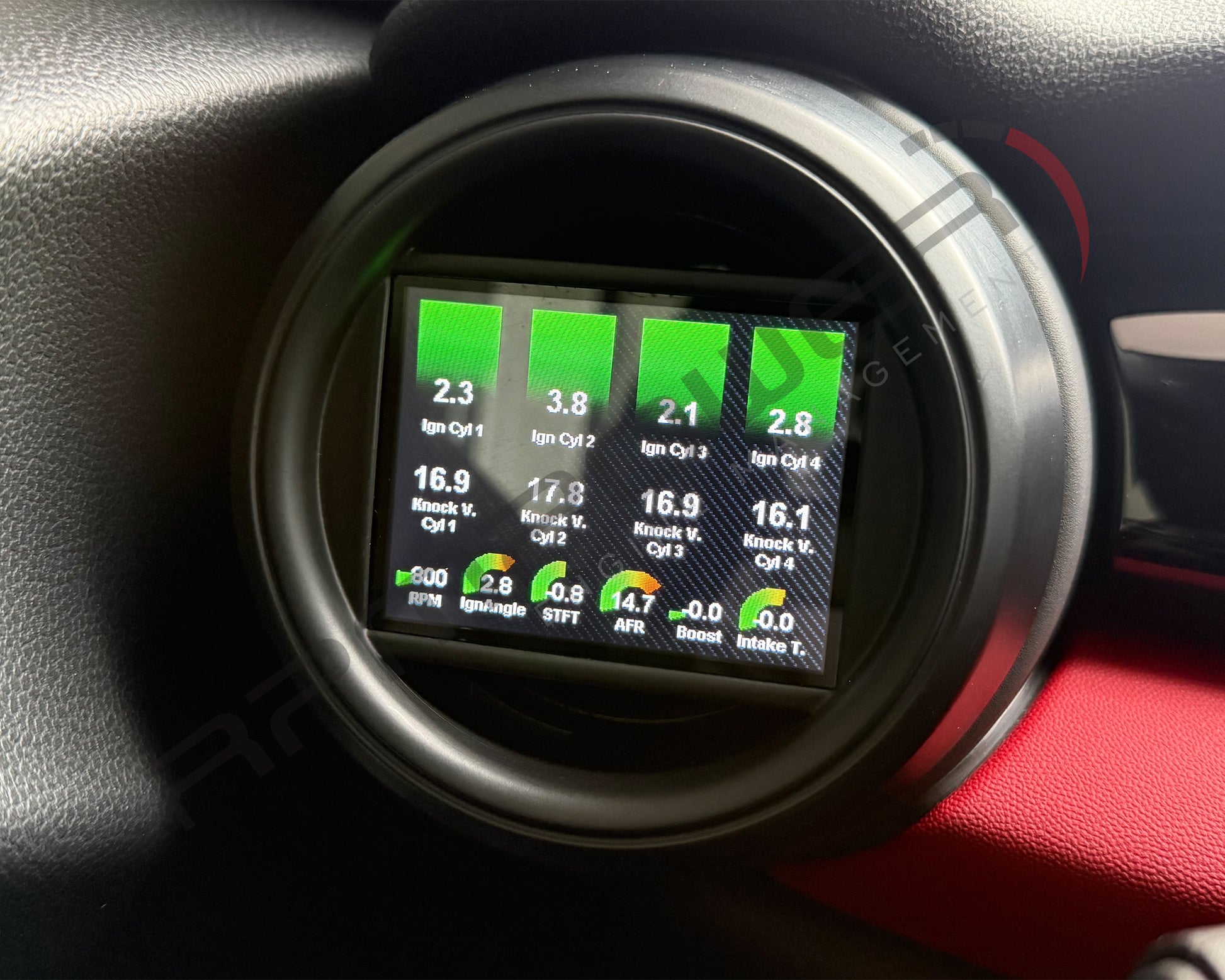

Customizable Views:

Choose from predefined sample pages or create your own:

• Up to ten customizable pages with 20 different widget types (e.g., sensor values, analog pointers, speed bars).
• Widgets can be resized and positioned using drag-and-drop functionality, with adjustable colors.
• Supports up to 64 widgets per page.

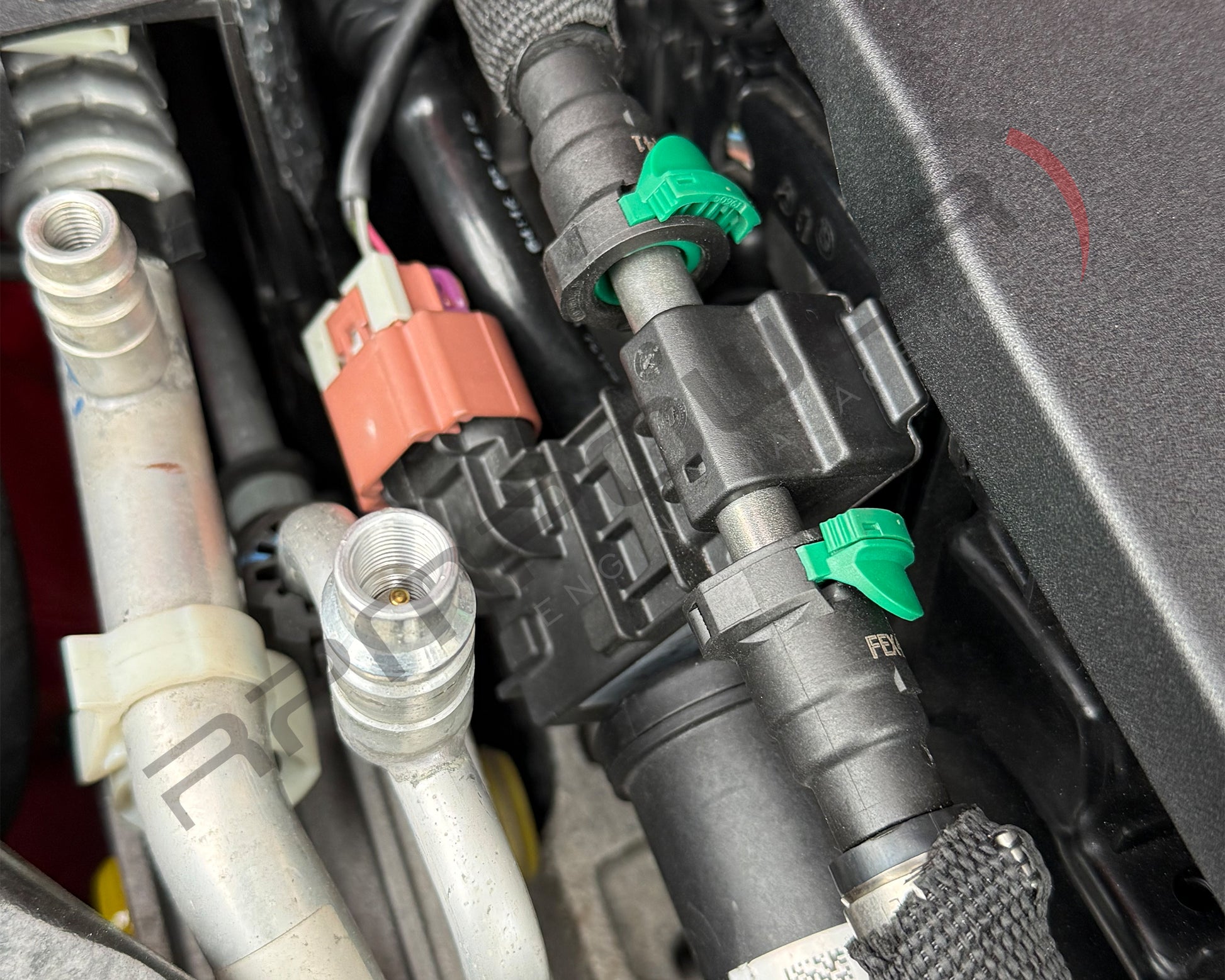

Optional Ethanol Sensor Hardware:

• Flex Fuel Sensor: For accurate measurement of ethanol content.
• Plug and Play Wiring Harness: Simplifies connection from the sensor to the display.
• Quick Connect Ethanol Sensor Fittings and Hose Clamps: Ensures secure connections.
• Factory Fuel Line Modification Required: Allows for proper integration with the existing fuel line, and OEM fuel line is more superior that most aftermarket available hose.

Display Setup Software - DSS:

Utilize CANchecked DSS to fully customize your display. The integrated log viewer allows for easy downloading and viewing of log files. The TRI Editor provides options to adjust sensors, set warning thresholds, and rename sensors.

https://www.canchecked.de/downloads/dss-installation/

Supported Values:

Comprehensive data access includes:

• Temperatures: Exhaust, coolant, oil, intake, and outside temperatures.
• Pressures: Boost, ambient, and fuel rail pressures.
• AFR/Mixture: AFR values, injection times, and fuel trim adjustments.
• Other Metrics: RPM, air mass flow, vehicle speed, throttle angle, ignition angle, and more.

Default Hardware Included with your purchase:

• MFD28 Gen2 data display
• Vehicle-specific OBD2 connection cable
• Quickstart guide
• USB data cable
• Pre-installed SD card
• SD card adapter
• Display Anti-glare Film to reduce reflections and finger prints

Advanced Add-on Features Capabilities:

• Connect up to four analog sensors, supporting linear 0-5V and NTC sensors.
• CANchecked sensors are pre-configured.
• External shift light with customizable warning settings is available for connection.
• Direct ethanol sensor connectivity with necessary components.

Optional Accessories (available for additional cost):

For accessory orders, please contact us via email:

• CC24000 SLM08 - External switching light module
• CC22780 ANC04 - Four-way AIN harness
• CC22100 CBD08 - Eight-way CAN distribution hub
• CC22902 NTC01 - 1/8 inch NPT temperature sensor for liquids
• CC22903 TCC01 - Type K converter (0-1250°C)
• CC22901 FLP01 - Pressure sensor (0-10 Bar)
• CC22900 BST10 - Pressure sensor (6.5 Bar)

Made in Germany
